Synthesis of doxorubicin-loaded peptosomes hybridized with gold nanorod for focused drug supply and CT imaging of metastatic breast most cancers | Journal of Nanobiotechnology


Synthesis and characterization of PBLG

ROP of NCAs is essentially the most fascinating technique to synthesize polypeptides. Polymerization below delicate situations utilizing major amines yielded slender molecular weight distribution [23]. On this report, PBLG as hydrophobic block of amphiphilic block copolymer was efficiently synthesized utilizing the ROP of BLG-NCA via initiator (n-hexylamine) with monomer/initiator molar ratio of 120 [46]. The structural properties of the ready PBLG was confirmed by 1HNMR. Determine 1 illustrated the 1HNMR spectrum of PBLG. The attribute resonance alerts of methylene teams (–CH2CH2COO) was noticed at 1.60–1.78 ppm (c) and 1.80–2.76 ppm (d). Moreover, peaks appeared at 3.96 ppm (b, –CH–), 5.07 ppm (e, OCH2Ph), 7.29–7.42 ppm (f, fragrant ring, OCH2–Ph), and eight.38 ppm (a, –NH–) had been assigned to PBLG. Additionally, the attribute alerts equivalent to n-hexylamine phase was noticed at 0.84–0.94 ppm (h, –CH3) and 1.23–1.35 ppm (g, –(CH2)5–). Moreover, chemical construction of PBLG was additional confirmed via the FTIR spectrum. Based on this spectrum (Fig. 2B), the stretching vibration absorption peaks at 3295 cm−1 (CO–NH), 2810–2951 cm−1 (C–H aliphatic), 3033–3063 cm−1 (C–H fragrant), 1736 cm−1 (COOR), 1654 cm−1 (CONH), 1547 cm−1 (bending N–H in amide) and the deformation vibration of benzene ring at 739 cm−1 and 697 cm−1) had been attributed to PBLG. The molecular weight and molecular weight distribution of the synthesized PBLG had been evaluated utilizing GPC evaluation (Fig. 1, Desk 1). Based on the GPC evaluation, the synthesized PBLG confirmed unimodal chromatogram with molecular weight of 14962 Da and slender molecular weight distribution of 1.19. Thus, it may very well be concluded that the ROP of NCAs produced precisely-controlled molecular weight of the polymer.

Fig. 1
figure 1

A 1HNMR spectrum of PBLG B GPC chromatogram of PBLG

Fig. 2
figure 2

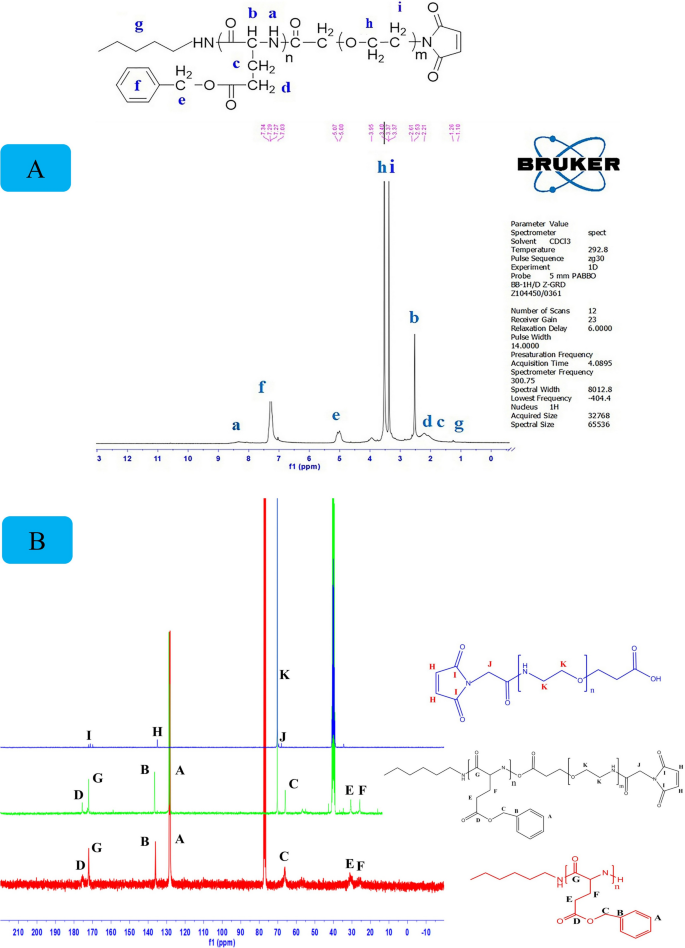

A 1HNMR spectrum of Mal-PEG-PBLG diblock copolymer. B 13CNMR spectrum of PBLG (crimson), Mal-PEG-COOH (blue), and Mal-PEG-PBLG block copolymer (inexperienced)

Desk 1 Polymer traits decided by GPC

Synthesis and characterization of Mal-PEG-PBLG

The EDC/NHS amide conjugation response was utilized for prepration of Mal–PEG-PBLG copolymer by coupling response between PBLG-NH2 and Mal-PEG-COOH. Chemical construction of Mal-PEG-PBLG wasconfirmed through 1HNMR, 13CNMRand FTIR spectrum Fig. 2A, B and C. The 1HNMR spectrum of Mal–PEG-PBLG indicated peaks equivalent to each PBLG and Mal-PEG-COOH blocks. The height equivalent to CH2 of PEG block was noticed at 3.37–3.5 ppm (peaks g and h), confirming the profitable conjugation of PEG to PBLG. The profitable coupling response between PBLG-NH2 and Mal-PEG-COOH was additional confirmed by 13CNMR (Fig. 2B). On this regard, the height equivalent to PEG (CH2-CH2-O) appeared at 71 ppm (peak Ok) and peaks equivalent to PBLG had been current at 25 ppm (E, CH2COO), 32 ppm (F,CH2-CH-CO), 65 ppm (C, CH2-Ph), 130 ppm (A, Ph), 136 ppm (B, Ph-CH2O), 171 ppm (G, COCH) and 175 ppm (D, COOCH2Ph). Moreover, conjugation of Mal-PEG-COOH to PBLG-NH2 was confirmed by FTIR evaluation. It exhibits the amide bond peak at 1651 cm−1 (NH-C = O) equivalent to Mal–PEG-PBLG copolymer and the disappearance of carbonyl group of carboxylic acid in PEG chain (1709 cm−1). As well as, peaks equivalent to each PEG and PBLG appeared in Mal–PEG-PBLG, that are proven in Fig. 3.

Fig. 3
figure 3

FTIR spectra of PBLG a, Mal-PEG-COOH b, and Mal-PEG-PBLG block copolymer c

The differential scanning calorimeter (DSC) thermogram of the PBLG indicated a broad peak at ~ 44–114 °C, whereas a single peak at 40–50 °C was noticed within the thermogram of Mal-PEG-PBLG. Based on this evaluation, profitable covalent conjugation of PEG to PBLG was additional confirmed because of altering the melting endothermic bond to decrease temperature (Fig. 4). The thermal stability of the diblock copolymer, hydrophilic and hydrophobic blocks, was evaluated by TGA (Fig. 4B). Based on the TGA profile, the synthesized PBLG block and business Mal-PEG-COOH confirmed 75.77% and 98.50% weight reduction, respectively by elevating the temperature to 600 ºC. It ought to be famous that the burden lack of Mal-PEG-COOH began from larger temperature (350 ºC) with quick weight reduction sample whereas for PBLG block, the burden loss began from decrease temperature (280 ºC) with sluggish weight reduction sample.

Fig. 4
figure 4

A Differential Scanning Calorimeter (DSC) of PEG (crimson), PBLG (blue), and PEG-PBLG (black), B TGA of PEG (inexperienced), PBLG (crimson), PEG-PBLG (blue)

It’s price mentioning that the burden loss sample for PEG-PBLG block was between PEG and PBLG ones which began from decrease temperature as compared with PEG whereas demonstrating larger weight reduction sample as compared with PBLG block (Fig. 4).

Optical and structural characterization of GNR and MUA-GNR

Lately, GNRs have been broadly studied as diagnostic probe in theranostic system because of a number of glorious properties together with anisotropic optical and physicochemical properties, facile synthesis and potential floor modification for concentrating on and optical activation, excessive absorption capacity at low quantities of GNR due to robust floor plasma resonance (SPR), simply adjustable longitudinal plasmon wavelengths in seen to NIR area through altering the facet ratio of GNRs, nice chemical stability and low cytotoxicity [47]. Amongst GNRs with numerous sizes, the nanoscale GNRs have been broadly used for biomedical functions because of their distinctive properties together with glorious dispersion capacity, adjustable LSPR band within the NIR area, decrease toxicity and sooner clearance in vivo [48]. The seed-mediated technique and the seedless technique are extra widespread approaches for the synthesis of small GNR. On this regard, seedless technique has extra benefits comprising (1) easy synthesis of GNR in massive scale and good high quality; (2) superior reproducibility; and (3) adjustable width as small as 8 nm [49]. As a result of benefits of small GNR for biomedical functions and their distinctive optical properties, on this research, seedless technique was utilized to arrange small GNR [50]. Surfactants used within the strategy of the GNRs synthesis (CTAB) have restricted their organic functions because of their excessive cytotoxicity. Thus, alternative of CTAB with thiol-terminated molecules through ligand trade technique is one the efficient technique for the floor modification of small GNRs. On this regard, we used 11-mercaptoundecanoic acid (MUA) as hydrophobic thiolated ligand to functionalize small GNRs to cut back its toxicity and encapsulate it in bilayer of peptosome. The profitable alternative of CTAB with natural ligand was confirmed by zeta potential and FTIR spectroscopy [51].

The UV–seen absorption spectra of small GNRs and hydrophobic GNRs had been analyzed with quartz cuvettes with 1 cm optical path size. The absorption spectra of GNR, MUA-GNR (GNR capped MUA) and the TEM picture of MUA-GNR had been represented in Figs. 5A, 6. Based on UV spectra, the transverse plasmon wavelength (TPW) and the longitudinal plasmon wavelength (LPW) of GNRs appeared at about 794 and 512 nm, respectively. The alternative of CTAB by MUA was confirmed by measuring the zeta potential of the GNR. The zeta potential evaluation indicated profitable ligand trade course of because of the discount of GNR floor cost from 21.8 ± 1.4 to −16.7 ± 0.4 mV after ligand alternative of positively charged CTAB with negatively charged MUA, verifying that the majority of CTAB had been changed by MUA [52,53,54].

Fig. 5
figure 5

A UV spectra of GNR and MUA-GNR, B TEM picture of MUA-GNR

Fig. 6
figure 6

FTIR spectra of A CTAB (crimson) and CTAB-GNR (blue). FTIR spectra of B MUA (blue) and MUA-GNR (crimson)

Furthermore, chemical construction of ligands on the floor of GNR was investigated by FTIR spectroscopy earlier than and after the ligand trade course of. On this regard, FTIR spectrum of CTAB-capped GNR (Fig. 6A, crimson) indicated a peak at 1058 cm−1 (arrow, a) equivalent to stretching frequency of the quaternary amine of CTAB layer on the GNR floor. In addition to, COOH stretch band (1699 cm−1, arrow d) appeared in FTIR spectrum of MUA (Fig. 6B, crimson) which was shifted to 1601 cm−1 (arrow c) in GNR-MUA spectrum (Fig. 4B, blue) because of the deprotonation of COOH teams. Existence of bands equivalent to C-S stretch (718 cm−1, arrow b) and elimination of S–H stretch (2682 cm−1, arrow d) in MUA-GNR demonstrated the profitable ligand trade [55,56,57].

Within the different arms, the spectrum of MUA-GNR indicated the crimson shift within the longitudinal floor Plasmon peak because of its floor modification. Throughout the ligand trade, thiols bind to gold via Au–S bonds, which lower the density of free electrons within the small GNR. Enhancing electron density result in improve the SPR frequency; accordingly, the SPR could be red-shifted (in the direction of decrease frequency) when the electron density was decreased [55].

The TEM picture indicated rod morphology of the synthesized GNR with common diameter of 25 nm and fascinating homogeneity (Fig. 5B).

Preparation and characterization of peptosomes

Earlier research demonstrated that the hydrophilic quantity fraction (fEO) of linear amphiphilic copolymers affected the morphology of the self-assembled NPs. Vesicular NPs may very well be fashioned when the fEO of the amphiphilic copolymers are within the vary of 25–40% [56,57,58,59]. For the primary time, we efficiently ready peptosome primarily based on PEG-PBLG with favorable fEO (25%) via adjusting the feed ratio of BLG-NCA to n-hexylamine in ROP course of. Single emulsion technique was utilized for the formation of clean and MUA-GNR-loaded peptosomes. The inner core and membrane of peptosomes had been loaded with hydrophilic DOX and hydrophobic MUA-GNR respectively through double emulsion technique.

Encapsulation effectivity (EE) and loading content material (LC) of DOX in peptosomes had been calculated to be 42 ± 3.6 and 1.68 ± 3.6, respectively. Then again, the quantity of MUA-GNR (Au content material) encapsulated in peptosomes measured by inductively coupled plasma/optical electron microscopy (ICP-OES) was 0.33 wt%.

Measurement and polydispersity of the ready peptosomes had been decided via DLS and the outcomes are represented in Desk 2.

Desk 2 Measurement and polydispersity index of the clean and co-encapsulated formulations

The dimensions of nanoparticulate programs affect each their blood circulation time and tumor accumulation [60]. It ought to be famous that NPs smaller than 200 nm considerably accumulate at tumor web site because of their passive concentrating on functionality after intravenous administration primarily based on EPR impact (enhanced permeation and retention impact).Within the present research, each nanoplatforms (Apt-Pep@MUA.GNR-DOX and Pep@MUA.GNR-DOX) confirmed applicable dimension (smaller than 200 nm) with applicable PDI for intravenous administration as most cancers therapeutics [14, 44, 45].

Acumulation of the nanoparticulate programs in tumor microenvironment through EPR impact will increase their therapeutic index whereas lowering their systemic toxicity.

Latest developments indicated that theranostic nanoplatforms primarily based on biocompatible polymeric vesicles have exhibited splendid efficacy when it comes to therapy and prognosis [28].

Till now, numerous distinction brokers had been encapsulated in polymeric vesicles amongst which, small GNR confirmed fascinating effectiveness and security profile because of the excessive X-ray attenuation coefficient whereas clearing from the physique via renal clearance [48, 58,59,60].

One of many necessary issue for security of GNR is their capping agent. On this regard, GNRs with poisonous CTAB capping usually are not appropriate for biomedical functions. Due to this fact, extraction of CTAB was carried out by ligand trade course of with thiol-terminated molecules because of robust AU–S conjugation [66].

Based on some great benefits of small GNRs as CT scan distinction agent and polymeric vesicles as promising automobile, designing theranostic nanoplatforms primarily based on vesicular buildings and small GNR might present theranostic functionality with fascinating security towards growing most cancers theranostic platforms.

In a research, DiazDuarte-Rodriguez et al. fabricated pH-responsive polymersomes primarily based on poly(ethylene glycol)-b-poly(N,N-diethylaminoethyl methacrylate) (PEG-b-PDEAEM) [67]. This polymerome was concurrently loaded with hydrophilic GNR and DOX however organic utility of this method was not evaluated in vivo. It ought to be famous that the encapsulated GNR on this research was capped with poisonous CTAB layer.

Within the present research, for the primary time, a hydrophobic small GNR with biocompatible non-toxic capping was co-encapsulated with DOX in polymeric vesicles primarily based on PEG-PBGL. The fabricated revolutionary multimodal theranostic nanoplatform was extensively investigated in vitro and in vivo when it comes to its biomedical efficiency.

In vitro DOX launch patterns

On this regard, the discharge of therapeutic payload (DOX) from Pep@MUA.GNR-DOX in numerous launch media ((phosphate buffered salin) PBS, PBS with 30% v/v FBS and citrate buffer) was investigated (Fig. 7). The outcomes demonstrated that the quantities of DOX launched from Pep@MUA.GNR-DOX in numerous buffer media was negligible. This is perhaps because of the excessive stability PEG-PBLG block copoly peptide at totally different pH and below physiological situations.

Fig. 7
figure 7

Launch patterns of DOX from Pep@MUA.GNR-DOX in numerous launch media together with PBS (pH = 7.4), PBS supplemented with 30% v/v FBS, and citrate buffer (pH = 5.4). (Error bars present the usual error of imply for 2 totally different experiments in the identical situations).

Serum stability of peptosomes

The impact of serum proteins on the scale and polydispersity index of the focused and non-targeted peptosomes had been evaluated via DLS technique (Fig. 8). The results of this research demonstrated glorious stability of the ready peptosomes with slender dimension dispersion in organic situations throughout 48 h incubation. The noticed uniform particle dimension dispersion of the fabricated peptosomes indicated the essential function of PEGylation and aptamer ornament on the floor of this platform, which stop protein adsorption and aggregation. As well as, shelf lifetime of focused and non-targeted peptosomes had been evaluated after 30 days storage at 4 °C. Based on this experiment, no change in particle dimension and PDI of the ready peptosomes over 30 days storage at 4° C demonstrated fascinating stability and shelf life of those programs.

Fig. 8
figure 8

Serum stability of the Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX in PBS supplemented with 10% FBS after 0, 1 and a couple of days incubation in a shaker incubator at 37 °C when it comes to nanoparticle dimension (A) and polydispersity index

EpCAM aptamer conjugation

The ready Pep@MUA.GNR-DOX was conjugated to thiol-modified EpCAM DNA aptamer through thiol-maleimide response. The maleimide useful group of PEG may very well be covalently linked to thiol end-terminal of EpCAM aptamer to arrange focused peptosome (Apt-Pep@MUA.GNR-DOX). Aptamer conjugation on outer floor of Pep@MUA.GNR-DOX brought on 20 nm dimension increment of Apt-Pep@MUA.GNR-DOX as compared with Pep@MUA.GNR-DOX by DLS measurement. The dimensions increment was beforehand reported after concentrating on ligand ornament on the floor of NPs [61, 68,69,70,71,72,73,74].

The yield of aptamer conjugation was not directly calculated through measuring the absorption of washing answer of focused nanoformulation at 260 nm that indicated 100% of aptamer was adorned on the peptosomes floor.

Morphological investigation of focused and nontargeted peptosomes

The morphological properties and dimension polydispersity of Apt-Pep@MUA.GNR-DOX and Pep@MUA.GNR-DOX had been investigated through FE-SEM and AFM photos (Figs. 9 and 10). The programs indicated spherical morphology and applicable nanoscale dimension in FE-SEM photos (Fig. 9) which has similarities to the DLS outcomes. Moreover, extra details about morphology and homogeneity of the focused and non-targeted platforms had been supplied via AFM photos (Fig. 10). The AFM evaluation of peptosomes confirmed the spherical construction of nano-formulations with slender dimension distribution.

Fig. 9
figure 9

FE-SEM photos of Pep@MUA.GNR-DOX (A) and Apt-Pep@MUA.GNR-DOX (B)

Mobile uptake

Focused platforms have been broadly utilized for particular supply of nanoformulation to most cancers cells. Within the present research, the mobile internalization functionality of the ready programs, Pep@MUA.GNR-DOX, Apt-Pep@MUA.GNR-DOX and free DOX was evaluated utilizing movement cytomerty evaluation. For this objective, the mobile uptake potential of Apt-Pep@MUA.GNR-DOX, Pep@MUA.GNR-DOX and free DOX in 4T1 and CHO cell traces (as EpCAM optimistic and destructive cell traces respectively) was examined. Based on the movement cytometry outcomes illustrated in Fig. 11, better mobile DOX internalization was noticed within the focused peptosomes in comparison with non-targeted ones within the 4T1 cell traces whereas mobile internalization of each focused and non-targeted peptosomes was equivalent in CHO cells as EpCAM-negative cells. This knowledge instructed a receptor-mediated endocytosis mechanism for EpCAM aptamer-targeted peptosomes in EpCAM overexpressed cells, 4T1 cell line. The EpCAM DNA aptamer used on this research, was able to delivering totally different platforms selectively to EpCAM overexpressing most cancers cells comparable to 4T1, MCF-7, C26 and HT29 [42, 43].

Fig. 10
figure 10

AFM evaluation of Pep@MUA.GNR-DOX (A); Apt-Pep@MUA.GNR-DOX (B), Top profile of Pep@MUA.GNR-DOX (C) and Apt-Pep@MUA.GNR-DOX (D)

In vitro cytotoxicity

The in vitro cytotoxicity of free DOX, Apt-Pep@MUA.GNR-DOX and Pep@MUA.GNR-DOX was investigated in two overexpressed EpCAM cell traces (4T1 and MCF-7) and an EpCAM destructive cell line (CHO) with the equal DOX concentrations starting from 0.3 to twenty μg/ml (Fig. 12). Obtained outcomes demonstrated considerably larger cytotoxicity for Apt-Pep@MUA.GNR-DOX in comparison with Pep@MUA.GNR-DOX in EpCAM-positive cells. Just like uptake research, no apparent distinction was noticed between Apt-Pep@MUA.GNR-DOX and Pep@MUA.GNR-DOX in EpCAM-negative cell line (CHO). The cytotoxicity outcomes on each 4T1 and CHO cells are in per these obtained from movement cytometry evaluation and confirmed that the distinction in cytotoxicity is proportional to the extent of mobile uptake of focused and non-targeted programs in EpCAM overexpressing cells. Beforehand, it was demonstrated that EpCAM acted as an efficient concentrating on ligand for selective supply of chemotherapeutics or imaging probes to cancerous cells because of EpCAM overexpression in major and metastatic breast cancers [75,76,77,78,79].

Fig. 11
figure 11

Stream cytometry evaluation of CHO, and 4T1 cell traces for DOX mobile internalization analysis after 2 h of publicity with both free DOX, Apt-Pep@MUA.GNR-DOX or Pep@MUA.GNR-DOX

It ought to be famous that EpCAM protein was overexpressed in most of human epithelial carcinomas, comparable to hepatic, colorectal, head and neck, breast and prostate cancers and particularly associated to poor prognosis of breast most cancers [55, 80].

In our research, free DOX confirmed larger mobile internalization and subsequently larger mobile toxicity as compared with each focused and non-targeted programs. The upper uptake and cytotoxicity of free DOX is is perhaps because of considerable internalization of small molecule of DOX via cell membranes.

In vivo antitumor exercise and systemic toxicity

The in vivo therapeutic functionality of Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX had been in comparison with free DOX after single dose intravenous (i.v) administration of Pep@MUA.GNR, Pep@MUA.GNR-DOX, Apt-Pep@MUA.GNR-DOX and free DOX with equal DOX focus (5 mg/kg) and MUA.GNR focus (1 mg/kg) in 4T1 tumorized BALB/c mice.

For this objective, tumor quantity, physique weight reduction and survival price of the mice obtained both Pep@MUA.GNR, Pep@MUA.GNR-DOX, Apt-Pep@MUA.GNR-DOX, free DOX or PBS as destructive management had been adopted for 30 days post-administration (Fig. 13). Based on the obtained outcomes, mice receiving both Apt-Pep@MUA.GNR-DOX or Pep@MUA.GNR-DOX confirmed enhanced tumor suppression as compared with these receiving both Pep@MUA.GNR, free DOX or PBS. This may very well be ascribed to the aptitude of the noparticulate platform in passive concentrating on and tumor accumulation because of the EPR impact.

Fig. 12
figure 12

MTT assay of 4T1 (A), MCF-7 (B) and CHO (C) cell traces after 48 h publicity to free DOX, Apt-Pep@MUA.GNR-DOX, Pep@MUA.GNR-DOX at 37 °C

Nevertheless, inhibition of tumor development of mice receiving Apt-Pep@MUA.GNR-DOX was significantly larger as compared with marginal tumor suppression in mice handled with Pep@MUA.GNR-DOX. The noticed excessive tumor suppression efficacy in EpCAM aptamer-bioconjugated peptosomes, was because of the excessive binding affinity of the focused system, Apt-Pep@MUA.GNR-DOX to EpCAM marker on the 4T1 floor and its consequent larger accumulation on the tumor web site. Because of this, binding of the focused peptosomes to EpCAM receptors on the cancerous cells surfaces, led to the improved cytotoxicity and therapeutic efficacy of the Apt-Pep@MUA.GNR-DOX as compared with that of Apt-Pep@MUA.GNR-DOX which may very well be attributed to the improved retention time of the Apt-Pep@MUA.GNR-DOX on the tumor microenvironment, thereby growing mobile internalization of DOX and retarding the tumor extravasation of the focused peptosomes.

Free DOX as a small hydrophilic molecule, circulates all through the physique post-administration and is vastly cleared from the blood circulation because of the renal clearance [81, 82]. Thus mice receiving free DOX didn’t point out tumor development inhibition in comparison with that of management group.

The physique weight of mice and survival price as indicators of systemic toxicity had been represented in Fig. 13B, C. On this report, 4 out of 5 mice handled with Apt-Pep@MUA.GNR-DOX and two out of 5 mice handled with Pep@MUA.GNR-DOX had been alive after 30 days i.v injection.Nevertheless, all animals receiving free DOX died throughout 30 days of experiment. Furthermore, 4 out of 5 mice receiving PBS died throughout 30 days, post-administration.

In a parallel experiment, the physique weight of mice receiving both Pep@MUA.GNR, Pep@MUA.GNR-DOX, Apt-Pep@MUA.GNR-DOX, free DOX or PBS was investigated 30 days, post-administration.

Obtained outcomes indicated that mice handled with both focused or non-targeted peptosomes didn’t present appreciable physique weight modifications in the course of the experiment whereas mice receiving free DOX illustrated lack of physique weight in the course of the experiment on account of free DOX systemic toxicity. In per earlier reviews, free DOX exhibited extreme systemic toxicity [82]. Nevertheless, encapsulation of DOX within the secure vesicular construction of peptosomes considerably decreased its systemic toxicity when it comes to survival share and alteration of physique weight. Within the present research, the focused Apt-Pep@MUA.GNR-DOX demonstrated the perfect efficiency towards tumor development suppression, lack of physique weight and survival share.

Biodistribution evaluation utilizing ex vivo florescence imaging

The biodistribution of the formulations had been evaluated after i.v. administration of free DOX, Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX (equal DOX focus of 5 mg/kg) to the 4T1 tumorized BALB/c mice. Within the subsequent step, 6 and 24 h post-injection, mice had been euthanized and main organs (kidney, spleen, liver, coronary heart, and lung) had been remoted and KODAK IS equipment was used to arrange ex vivo fluorescence imaging utilizing DOX fluorescence (Fig. 14).

Fig. 13
figure 13

In vivo therapeutic efficacy research of Pep@MUA.GNR, Apt-Pep@MUA.GNR-DOX, Pep@MUA.GNR-DOX and free DOX with equivalent DOX (5 mg/kg) and MUA.GNR (1 mg/kg) focus and PBS throughout 30 days after single dose i.v administration in 4T1 tumorized BALB/c mice. Tumor quantity (A); Survival share (B) and Physique weight (g) (C)

A major DOX accumulation in tumor tissues of mice receiving both Apt-Pep@MUA.GNR-DOX or Pep@MUA.GNR-DOX after 6 h i.v administration in comparison with these receiving free DOX had been indicated which is perhaps because of the longer blood circulation half-life and enhanced penetration into the tumor microenvironment through EPR impact. Enhanced tumor penetration of DOX loaded in focused and non-targeted peptosomes improved the biodistribution of DOX after encapsulation in peptosome nanostructures. Nevertheless, strongest DOX fluorescence depth was proven in tumor tissue of mice after24 h injection of Apt-Pep@MUA.GNR-DOX (p ≤ 0.0001, n = 4). For mice receiving free DOX, fluorescence depth in most organs and tumor tissue was very weak in comparison with these handled with both Apt-Pep@MUA.GNR-DOX or Pep@MUA.GNR-DOX, which is almost definitely because of the quick clearance of free DOX from the blood stream. On the opposite arms, DOX fluorescence depth in organs of mice receiving Apt-Pep@MUA.GNR-DOX demonstrated larger tumor accumulation and decrease main organs accumulation in comparison with these receiving Pep@MUA.GNR-DOX on account of improved pharmacokinetics of the focused peptosomes (Apt-Pep@MUA.GNR-DOX).

In vivo CT scan imaging

Latest researches indicated that gold NPs have extra benefits in comparison with FDA-approved iodinated distinction brokers because of the excessive density and atomic quantity, fascinating X-ray attenuation traits and adjustable form, dimension and floor chemistry for particular biomedical functions.

Within the present research, Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX had been employed as CT scan distinction brokers because of encapsulation of the hydrophobic GNR within the bilayer of each argeted and non-targeted peptosomes. The diagnostic capacity of the theranostic peptosomes was evaluated 6 and 24 h after i.v injection both Pep@MUA.GNR-DOX or Apt-Pep@MUA.GNR-DOX (150 µl of equal DOX focus of 5 mg/kg, 1 mg/kg of MUA.GNR focus to 4T1 tumorized BALB/c mice. Based on CT scan imaging outcomes (Fig. 15), the strongest CT sign depth worth was indicated in tumor tissue of mice receiving Apt-Pep@MUA.GNR-DOX in comparison with these handled with Pep@MUA.GNR-DOX. On the opposite arms, the animals handled with Pep@MUA.GNR-DOX indicated larger CT sign depth values in comparison with that of management group (handled with 150 µl PBS) after 6 and 24 h of i.v administration.

Fig. 14
figure 14

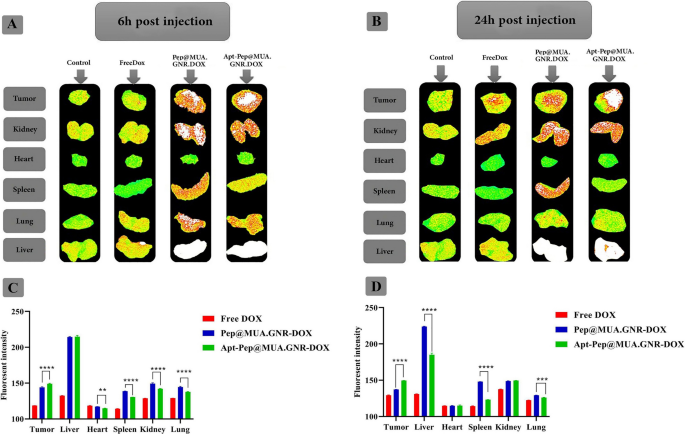

Ex vivo imaging of tumor tissues and mice organs. 6 h (A) and 24 h (B) after i.v injection of free DOX, Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX with equal DOX (5 mg/kg) and MUA.GNR (1 mg/kg) focus. The Quantitative ROI evaluation of DOX in tumor tissues and mice organs after 6 h (C) and 24 h (D) i.v. administration of both Apt-Pep@MUA.GNR-DOX, Pep@MUA.GNR-DOX or free DOX

Fig. 15
figure 15

Scientific CT scan imaging of 4T1 tumor-bearing mice 6 and 24 h post-injection of both Pep@MUA.GNR-DOX or Apt-Pep@MUA.GNR-DOX

With a purpose to exactly examine the theranostic effectivity of the ready platforms, the in vivo CT scan coronal views of the mice tumors had been ready (Fig. 16) and the ROI of the tumors tissues had been evaluated via 3D slicer (Model 4.11.20210226, https://www.slicer.org/) picture segmentation software program and CT sign depth values had been estimated in the entire tumor quantity (Desk 3). As represented in Desk 3, the Hounsfield density within the tumor of mice handled with Apt-Pep@MUA.GNR-DOX was larger than these of handled with Pep@MUA.GNR-DOX 6 and 24 h post-injection. The obtained outcomes demonstrated the aptitude and flexibility of the ready platform for in vivo CT imaging. The outcomes of this research had been clearly correlated with the information obtained from biodistribution investigation.

Desk 3 Density (Hounsfield) of the 3D slicer picture segmentation software program within the coronal view CT scan photos

Histopathological investigation

Pathological alterations of mice main organs had been investigated 20 days after administration of free DOX, Pep@MUA.GNR, Pep@MUA.GNR-DOX and Apt-Pep@MUA.GNR-DOX with similar DOX (5 mg/kg) and MUA.GNR (1 mg/kg) focus.

Based on H&E staining of tumors sections (Figs.1617), the tumor specimen of mice handled with both Pep@MUA.GNR-DOX or Apt-Pep@MUA.GNR-DOX confirmed better necrotic space in comparison with these handled with both free DOX or PBS. Moreover, the necrotic areas in mice handled with Apt-Pep@MUA.GNR-DOX was wider in comparison with all different therapy teams, which may very well be ascribed to the robust tumor accumulation functionality of the focused system. The cardiotoxicity in mice handled with free DOX was demonstrated via intense pathological atrophy of coronary heart tissue that is likely one of the main aspect impact of free DOX [7, 81, 84]. The ready peptosomal formulation confirmed no apparent cardiotoxicity when it comes to pathological deformations (Fig. 17).

Fig. 16
figure 16

The in vivo CT scan coronal view of the tumor web site 6 and 24 h post-injection of both Pep@MUA.GNR-DOX or Apt-Pep@MUA.GNR-DOX

Fig. 17
figure 17

Hematoxylin and eosin staining of tumor tissue and mice organs in 4T1 tumoric mice, 20 days i.v. injection of both PBS, free DOX, Pep@MUA.GNR, Pep@MUA.GNR-DOX or Apt-Pep@MUA.GNR-DOX with equal focus of DOX (5 mg/kg) and MUA.GNR (1 mg/kg)
