Structural evaluation of the native PC12 cell glycocalyx
We first investigated the structural configuration of the native glycocalyx of PC12 cells, by AFM- and 3D-SIM-based methods (Fig.) and assessed the effectivity of a complete glycocalyx-targeting enzymatic remedy, consisting of a cocktail of hyaluronidase II, chondroitinase ABC, heparinase III, and neuraminidase, in eradicating the glycocalyx.
We carried out AFM indentation experiments to check the mechanical and structural properties of the glycocalyx of reside PC12 cells, based mostly on the protocol developed by Sokolov et al. [34,35,36, ] (Fig. A-D). The rescaled pressure curves from the untreated cells present a bilinear regime within the semi-logarithmic scale (Fig. A,B). This behaviour is often related to the presence of two glycocalyx elements [ ], one longer (crimson line in Fig. A), and one shorter (black line in Fig. A,B). Conversely, for the cells handled with the enzymatic cocktail, the lengthy element was principally (90%) eliminated and solely the brief element was current (Fig. B).
The quantification of the management PC12 cells (Fig.C) demonstrated that the lengthy and brief elements of the native glycocalyx have a thickness of 1011 ± 78 nm and 330 ± 126 nm, respectively (particulars on the Sokolov bilayer brush mannequin and the lengthy and brief element might be present in (Extra file : SI-Fig. S1-2)). The enzymatic digestion of the glycocalyx virtually fully eliminated the lengthy element of the glycosidic brush (Fig. D). Solely in 10% of the measured cells this lengthy element was nonetheless current after the enzymatic remedy, and likewise it was considerably shorter (-21.4%) with a thickness of 795 ± 150 nm. The brief element was nonetheless current, but in addition shortened by 31.5% to a thickness of 226 ± 118 nm (Fig. B,D).
3D-SIM super-resolution imaging of reside PC12 cells (Fig. 38,39, ] (Extra file : SI-Fig. S3A). The staining of the pericellular sugar coat and the migration tracks disappeared after enzymatic remedy, with solely the intracellular vesicles remaining (Extra file : SI-Fig. S3B). Quantification of the thickness of this sugar coat on the border of the lamellipodial zones of the management cells revealed that it’s 858.1 ± 304.3 nm thick, in good settlement with the values obtained by the AFM-based evaluation (Fig. F).E, Extra file : SI-Fig. S3A,B) revealed the presence of ample intracellular vesicles (by means of which glycocalyx elements are transported to the floor) and a transparent pericellular sugar brush across the cells. We additionally detected migration tracks, extracellular buildings/organelles left behind by many migrating cells [
The mechanical properties of the glycocalyx have been examined following the so-called “mechanical spring mannequin” strategy (for particulars, see Strategies ““). The outcomes of the analyses display a glycocalyx stiffness of OkGC = 0.50 ± 0.08 pN/nm that decreased ~ 50% after the enzyme digestion to OkGC = 0.24 ± 0.03 pN/nm (Fig. G).
Imaging of fastened PC12 cells (with or with out enzymatic remedy) by AFM confirmed that the native cell floor was characterised by porous, reticular and filamentous buildings (Fig.H), which grew to become easy after the enzymatic remedy with few remaining agglomerates (Fig. I).
Altogether, these findings confirmed the presence of a considerable glycocalyx layer, roughly 1 μm thick, round native PC12 cells. Additionally, the efficacy of the enzymatic remedy was validated, resulting in a serious discount of the glycocalyx. It was, nevertheless, not full and principally attributable to the lengthy element.
Modelling of the floor accessibility as a perform of cell membrane compliance to the nanotopographies
On this work, we used three completely different topographies (typical representations of the morphological options are proven in Fig.A and Extra file : SI – Fig. S4-5): a featureless flat zirconia substrate (flat-Zr, produced by ion gun sputtering) with a roughness parameter Rq < 1 nm, and two nanostructured zirconia substrates with a Rq = 15 nm (ns-Zr15) and Rq = 20 nm (ns-Zr20); the latter two produced by SCBD (fabrication particulars in 4.1–2). The construction and morphology of the nanostructured movies consequence from the random stacking and aggregation of impinging nanometric particles of ZrO2 and carefully mimic nanotopographical options that cells encounter in ECM with spatial parameters which might be related for mechanotransduction [ , , ].
In comparison with flat substrates, the three-dimensionality of the nanotopographical surfaces provides a important stage of morphological complexity to cell adhesion processes (Fig.A). The efficient mobile contact space with a given nanotopography can fluctuate decisively as corollary of the aptitude of the cell membrane and its embedded adhesion receptors to entry, or not, the underside components of nanotopographical asperities. That is nonetheless a moderately underestimated facet, although it was just lately discovered by Park et al. [ , ] that completely different compliance of the cell membrane with a nanotopography can influence vital (patho)physiological mobile processes, akin to cell migration and behavior of metastatic cells. Our earlier characterisations demonstrated that the dimensionalities of the nanotopographical asperities produced by SCBD affect mechanotransductive processes [ ] .
Furthermore, work by Paszek et al. [, ] has proven that the glycocalyx, as construction within the cell/microenvironment interface, kinds a steric barrier for integrin/ligand binding exterior of already established adhesion websites with the substrate, as a consequence of its bulkiness and compression [ , ], and may influence the membrane bending [ ]. Nevertheless, these research had been carried out within the context of flat substrates. It may be hypothesised that, additionally within the case of nanotopographical substrates, the presence of a protracted glycocalyx (e.g., tons of of nm for the PC12 cells, Fig. C,E,F,H) will impede the entry of adhesion receptors to decrease areas of asperities. Our measurement of the glycocalyx stiffness (Fig. G), helps this assumption. Certainly, in presence of their native glycocalyx, PC12 cells work together predominantly with the apical a part of the nanotopographical asperities [ ].
Nevertheless, little or no is understood on how these two important components on the cell/microenvironment interface, the nanotopography and the glycocalyx, have an effect on nanoscale mechanotransductive processes together.
We had been interested by modelling the accessibility of nanotopographical asperities for the cell in dependency of cell membrane compliance with the substrate, and the way this is able to have an effect on the corresponding configuration of the cell/substrate interface (Fig. 42,43, ]. As well as, Changede et al. [ ] discovered that nanocluster bridges of unligated integrins can kind between adjoining (tens of nm) nanometric adhesion websites which alone are usually not enough to maintain IAC maturation. With respect to the minimal adhesion unit, we decided the variety of these asperities on the completely different interfacial depths which might be characterised by a 3D floor space of not less than 3600 nm2, as a result of it has been proven that, not less than, 4 integrin binding websites inside 60 nm can function such a minimal adhesion unit that promotes IAC maturation [45,46,47, ].B). We analysed morphological AFM maps of ns-Zr15 and ns-Zr20 by measuring, at completely different interfacial depths, a number of parameters which might be vital for cell adhesion and mechanotransduction (Fig. C,D). Into this mannequin, we integrated recognized mechanotransduction-relevant components, akin to ligand spacing and minimal adhesion unit (for particulars on the mannequin, see Strategies “ “). For ligand spacing, we set a worth of 60 nm, based mostly on the recognized threshold that regulates the formation of IAC [
The target behind this modelling was to get an concept of the type of nanotopographical cues the cell would possibly understand at completely different ranges of compliancy (Fig.C). The morphological variations between nanotopographical substrates have the potential to shift spatial mechanotransduction-relevant components, as we now have beforehand proven in an easier mannequin [ ]. Nevertheless, the disordered nature and sophisticated geometrical properties of those nanostructured asperities immediate an in-depth evaluation contemplating additionally the cell membrane compliancy, as a result of integrin clustering depends upon the native association of adhesion websites on the nanoscale moderately than on the worldwide common ligand density [ ].
The variety of accessible asperities initially will increase for each circumstances, ns-Zr15 and ns-Zr20, when reaching deeper interfacial depths, however deeper compliancy ranges are needed for ns-Zr15. Additionally, the imply space of those asperities and the whole 3D floor space is decrease for ns-Zr15 than for ns-Zr20 at most compliancy ranges (aside from very low compliancy) (Fig.C, D). Constantly, after the mixing of the ligand spacing issue, the convergence of asperities that are in a 60 nm adjacency can solely be achieved at a lot greater compliance stage for a lot of asperities within the ns-Zr15 situation, in addition to the spatial requisites for minimal adhesion unit (Figs. B, C, D).
These outcomes display, as expectable, that stronger cell membrane compliance to the nanotopographical floor can present an elevated variety of interplay websites with spatial circumstances which might be appropriate for integrin clustering and IAC maturation. These particular results are, nevertheless, extremely depending on the given roughness of the nanostructured zirconia substrate. Certainly, a counterintuitive property of those cluster-assembled zirconia interfaces is that the rougher ns-Zr20 substrates show properties, when it comes to mechanotransduction-relevant parameters, which might be nearer to the flat floor state of affairs (which has no spatial restrictions) over a variety of compliance ranges; i.e., a probably much less strict confinement of interplay areas for integrin adhesion. The mannequin predicts as an alternative a stark distinction of mechanotransduction-relevant parameters between the low (equivalent to the presence of native glycocalyx) and better compliancy stage (diminished glycocalyx) for the ns-Zr15 substrate.
The mannequin means that the nanotopographical cues seem as a type of “3D QR code” (Fig.C) whose read-out shall be affected by the power of the cell membrane to succeed in decrease components of the asperities. Divergent ranges of cell membrane compliance will present completely different spatial floor data to the cell, with the potential to affect mechanotransductive nanoscale processes, akin to pressure loading and molecular clutch engagement.
Adhesion Pressure Spectroscopy for the characterisation of the influence of the nanotopography and glycocalyx on early integrin-related interactions
It has been demonstrated beforehand that spatial restrictions of the mobile adhesion website dimensions on the nanoscale (as within the case of ns-Zr15) preserve IAC on the focal advanced measurement and diminish stress fibre growth, in comparison with featureless flat substrates on which the IAC mature to FA and stress fibres kind . Not too long ago, we now have additionally proven that interplay with these particular nanotopographical options could cause extreme pressure loading in integrin-mediated nanometric adhesion websites throughout nascent adhesion formation, resulting in their disassembly, regulated by availability of activated integrins [ ].
Right here, we analysed how the adhesion and pressure loading dynamics in the direction of completely different nanotopographical options change within the presence or after main digestion of the glycocalyx (Fig.).
We due to this fact carried out adhesion pressure spectroscopy  on PC12 cells with their native glycocalyx and after remedy with glycocalyx-targeting enzymes. We used colloidal probes coated with three completely different topographies: flat-Zr, ns-Zr15, and ns-Zr20 (typical representations of the morphological probe options are proven in Extra file : SI – Fig. S5). We chosen 5 cell-probe contact occasions overlaying completely different levels of the important window of nascent adhesion formation in the direction of maturation to focal adhesions [ , ], i.e. 0 s, 20 s, 60 s, 120 s, and 240 s.
Nanoscale variations within the topography modulate the temporal adhesion and pressure loading dynamics
We first analysed the influence of the three completely different topographies within the presence of the native glycocalyx (strong traces in Fig.). The outcomes for flat-Zr and ns-Zr15 carefully reproduced the result of our earlier work [ ]. The adhesion pressure Fa was usually low within the flat-Zr situation, and the variety of jumps Nj elevated progressively till reaching a plateau. A distinct state of affairs was discovered for the ns-Zr15 situation, the place Fa reached greater values and Nj fluctuated closely, i.e., first rising strongly at 20 s after which exhibiting a drop in the direction of 60 s. This was mirrored in a big divergence of imply soar energy < Fj > for the 2 circumstances. Whereas this worth had solely minor variations within the flat-Zr situation, an increase to greater values within the ns-Zr15 situation with a most at 60 s was noticed. Usually, the vary of Nj values at later time factors are in good accordance with the potential adhesion websites predicted by the mannequin after integrating the ligand spacing issue (examine Fig. C,D with Fig. B).
Apparently, the values for ns-Zr20 situation had been as an alternative akin to the flat-Zr situation, and to not the ns-Zr15 one, in settlement with the mannequin predictions: a easy enhance in Fa with low absolute values corresponding to these obtained on flat-Zr, and a continuously low < Fj > . The values for W and Nt wavered in an analogous vary for all three circumstances (Extra file: SI – Fig. S6, strong traces). A dissection of the soar pressure distribution (Fig. D) confirmed for flat-Zr that the majority soar forces had been within the < 50 pN class in any respect time factors, with solely a minor enhance of intermediate (50–100 pN) and better forces (> 100 pN) over time. For ns-Zr15, there was as an alternative an early shift (beginning already at 20 s) in the direction of the upper forces, i.e., > 100 pN, even with look of some very excessive forces. The ns-Zr20 situation was intermediate, the soar pressure distribution was extra equilibrated than within the different two circumstances, with the 50–100 pN class being the predominant one for many time factors (besides 120 s).
These information present that small variations in nanoscale topographical options can have a big impact on early mobile adhesion parameters and interfacial force-related mechanotransductive processes on the cell membrane stage.
The configuration of the glycocalyx impacts on the mechanosensing of the nanotopography
After digestion of the glycocalyx, some fascinating and divergent results could possibly be noticed (dashed traces in Fig.and Extra file : SI – Fig. S6).
For the ns-Zr15 situation, the key glycocalyx discount had a powerful influence on a number of parameters: it diminished Fa, Nj, < Fj > and W to values that had been truly similar to these we noticed for the flat-Zr situation with the native glycocalyx, and even under, from 20 s onwards.
For the flat-Zr situation, the digestion of the glycocalyx had as an alternative the other impact for Fa and Nj, resulting in elevated values which might be corresponding to the ns-Zr15 state of affairs with the native glycocalyx and even greater, whereas W and < Fj > (besides 120 s) remained mainly unchanged. For ns-Zr20, the variations as a result of glycocalyx-targeting enzymatic remedy had been extra modest, the W (for the 120 s and 240 s time factors) and Nj (at 60 s) elevated at sure time factors, whereas Fa and < Fj > didn’t alter. The sturdy cutback of the glycocalyx had a drastic impact on the soar pressure distribution (Fig.D) within the ns-Zr15 situation, as a lot of the soar forces had been discovered within the < 50 pN class all the time factors. A minor fraction of forces was within the 50–100 pN class, whereas greater forces had been virtually absent. This was an virtually full inversion in comparison with the untreated cells interacting with this nanotopographical floor. The glycocalyx-targeting remedy had as an alternative little influence on the soar pressure distribution within the flat-Zr situation (slight shift to extra intermediate forces) and there was virtually no alteration for ns-Zr20 situation.
An fascinating facet was additionally noticed with respect to probably the most possible soar forces at 0 s. The values for these first pristine interactions forming between integrins and substrate had been diminished after glycocalyx digestion in all topographical circumstances (Desk, see additionally Extra file : SI – Fig. S7). That is congruent with the mechanical loading of integrins as a result of adjoining compressed glycocalyx proven by Paszek et al. [ , ], and our information on the glycocalyx stiffness (Fig. G).
These outcomes present that the glycocalyx has a decisive affect on the early adhesion dynamics in the direction of nanotopographical options and that this affect depends upon the nanometric particulars of the topography, as evident particularly for the case of ns-Zr15 (which has been proven to strongly modulate IAC-mediated mechanotransductive processes and signalling in PC12 cells [, , ]). Certainly, the influence of glycocalyx discount can strongly differ in dependency of the actual nanotopographical circumstances, as additionally prompt by the mannequin.
The glycocalyx configuration impacts nanotopography-sensitive molecular clutch engagement to the retrograde actin stream
The forces that drive the pressure loading inside molecular clutches derive from the retrograde actin stream in lamellipodia, which, in flip, is generated by actin polymerisation and actomyosin contraction, regulated by Rho/ROCK signalling [58,59,60,61,62,63,64,65, ]. An inverse relationship between actin retrograde stream velocity and the traction forces has been demonstrated throughout transition from nascent adhesion to FA, i.e. IAC maturation causes actin stream deceleration by molecular clutch engagement and reinforcement [60,61, , ]., , , ,
For flat substrates, it’s recognized that the preliminary integrin clustering in nascent adhesions is impartial of actomyosin-driven forces [, ]. The pressure loading in molecular clutches, IAC progress to FA, and stress fibre formation, as an alternative strongly rely upon actomyosin contraction.

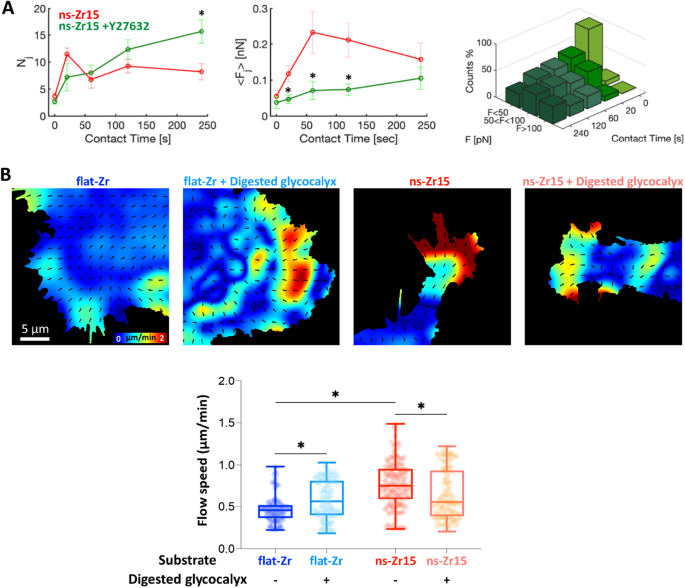

To grasp whether or not the noticed nanotopography-sensitive pressure loading dynamics within the nascent adhesions rely upon actomyosin-driven contractility, pressure spectroscopy measurements with the ns-Zr15 probes on PC12 cells handled with the ROCK inhibitor Y27632 have been carried out. The outcomes revealed a transparent change of the adhesion dynamics and forces after the Y27632 remedy (Fig.A). In another way from the ns-Zr15 situation of untreated cells, Nj progressively elevated over time after the inhibition of the actomyosin contraction, reaching notably excessive ranges at 120 s and 240 s. In comparison with the untreated ns-Zr15 situation, < Fj > was strongly diminished for the time factors within the important nascent adhesion formation window (20 – 120 s), with look of fewer excessive forces. Additionally, probably the most possible soar pressure at 0 s was diminished (25 ± 14 pN, in comparison with the worth of untreated cells reported in Desk , i.e., 39 ± 16 pN). These information point out the significance of pushed forces for the particular ns-Zr15 adhesion pressure dynamics.
Lamellipodia are integrators of the biophysical cues which might be current within the native mobile microenvironment. To that impact, the lamellipodial retrograde actin stream velocity is an efficient indicator for the general pressure loading-dependent molecular clutch engagement induced by a particular substrate [, , , , ]. Principally, the retrograde actin stream adjustments as a perform of the configuration and total maturation standing of the IACs contained in the lamellipodia. To check how the nanotopographical substrate cues and the glycocalyx configuration are built-in in a extra long-term and complete adhesion state of affairs, we measured the retrograde actin stream pace (and accordingly the extent of molecular clutch engagement), by recording the actin cytoskeletal dynamics (visualised by LifeAct™ transfection) of PC12 cells that work together with flat-Zr or ns-Zr15 substrates within the presence or after digestion of the glycocalyx.
Particle picture velocimetry (Fig.B and corresponding movies) demonstrated that the lamellipodial actin stream dynamics had been considerably sooner within the cells plated on ns-Zr15, in comparison with flat-Zr. That is in good accordance with the truth that on ns-Zr15 the IAC have focal advanced dimensions as a result of nanotopography-imposed spatial restriction for integrin nanocluster formation, whereas there’s focal adhesion formation on flat-Zr [ ]. This nanotopography-dependent distinction in actin stream pace equals when the cells had been handled with the glycocalyx-targeting enzymes, which means that the actin stream pace elevated on flat-Zr and decreased on ns-Zr15.
Notably, the other impact on the retrograde actin stream, as a consequence of main glycocalyx discount, that was noticed between flat-Zr and ns-Zr15, which represents a extra complete adhesion impact, is congruent to the phenomena seen for the nascent adhesion pressure dynamics within the pressure spectroscopic measurements. These information display that the nanotopography mechanosensing depends on Rho/ROCK signalling-regulated actomyosin contraction and that molecular clutch engagement is nanotopography-sensitive in a glycocalyx-dependent method.
For flat-Zr, the consequences of the glycocalyx digestion are in good accordance with the paradigm established by Paszek et al. [, ], i.e., a cumbersome glycocalyx layer promotes integrin clustering by funnelling of energetic integrins to an preliminary integrin/ligand binding website (“kinetic entice”) and by making use of further stress as a consequence of upward pressure attributable to the adjoining glycocalyx compression. The pressure spectroscopy outcomes recommend that the glycocalyx’ steric repulsion certainly strengthens the preliminary bonds, and that, after sturdy discount of the glycocalyx, the cells create extra bonds with the microenvironment. Nevertheless, the rise within the actin retrograde stream pace after glycocalyx digestion signifies that abolition of the glycocalyx-dependent results reduces the molecular clutch engagement and integrin clustering on the flat substrate.
Nanotopographical options apparently add one other stage of complexity, resulting in explicit glycocalyx-sensitive phenomena which might be topic to the precise topographical configuration, as they’re particular for the ns-Zr15 situation. Within the presence of the native glycocalyx, the preliminary nascent adhesion formation, which is impartial of actomyosin contraction, appears to be promoted within the ns-Zr15 situation (excessive Nj in the direction of 20 s). Nevertheless, the extreme pressure loading-dependent occasions (enhance of < Fj > and drop of Nj, that are depending on actomyosin contraction) lead ultimately to a decrease molecular clutch engagement to the retrograde actin stream (greater pace in comparison with the flat-Zr situation). Concordantly, we all know from our earlier work that the IAC are of a lot smaller nanometric dimensions (focal advanced measurement) on ns-Zr15, in comparison with the micrometric FA on flat-Zr . The deceleration of the retrograde actin stream pace, after glycocalyx digestion, insinuates as an alternative an elevated molecular clutch engagement in comparison with management ns-Zr15 situation. Sturdy glycocalyx discount has the potential to extend the accessible floor contact space [ ], by enabling simpler membrane bending across the asperities as a result of omission of the repulsive forces of the compressed glycocalyx [ , ] (Fig. C,D, Fig. ). The variations between ROCK inhibition and glycocalyx removing for the ns-Zr15 state of affairs, particularly concerning Nj (examine Fig. A and Fig. B), point out a fancy contribution of the glycocalyx configuration in nanotopography sensing.
